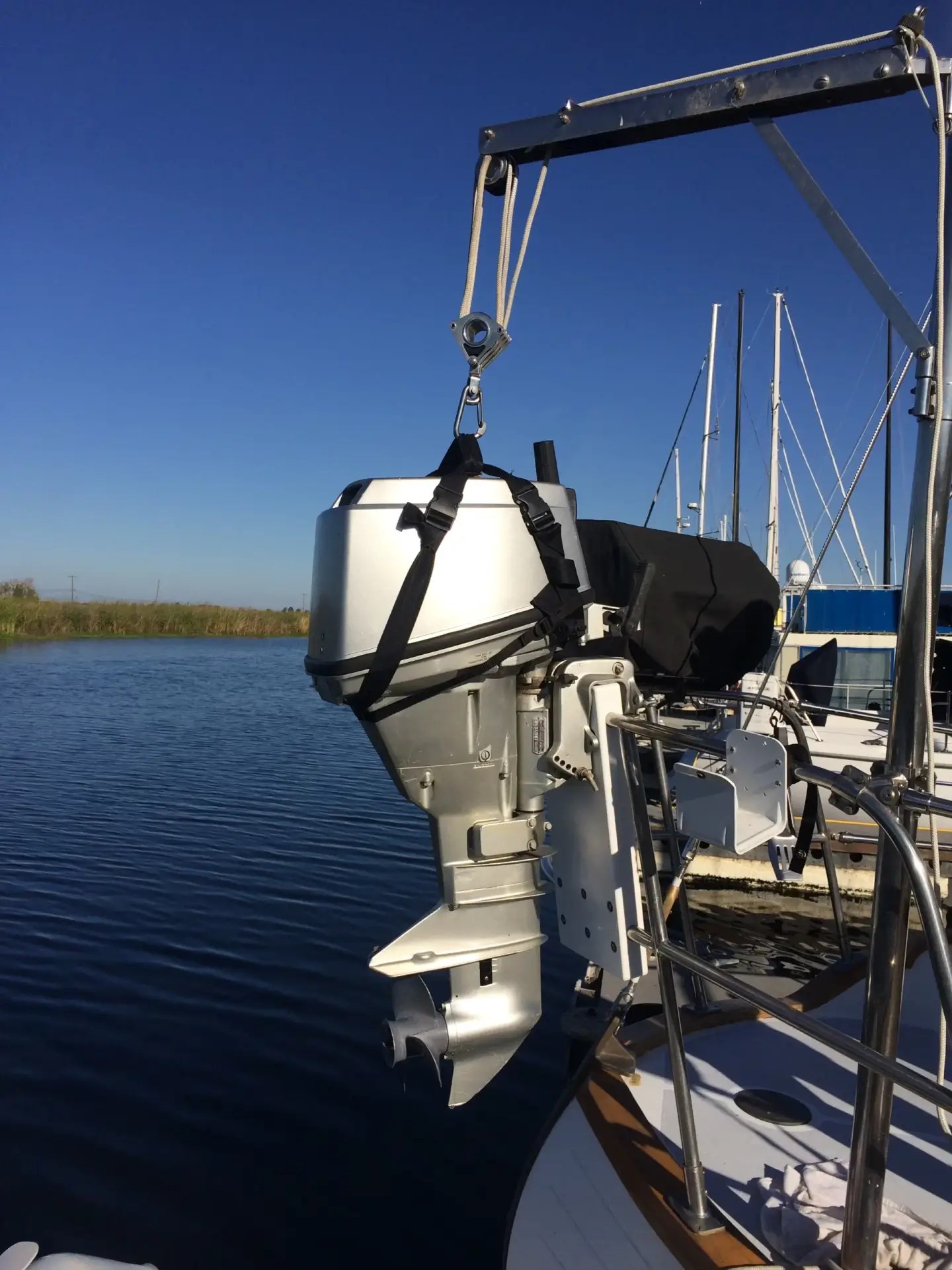

Maintaining our Honda 9.9 HP 4-stroke outboard motor is essential to ensure its longevity and reliable performance. Whether you’re exploring remote waters or using your dinghy for short trips, regular maintenance will prevent unexpected breakdowns and keep your motor running efficiently. Here are some key maintenance tasks we completed: changing the motor oil, gear oil, fuel filter, and spark plugs.
Like any engine, the motor oil in a 4-stroke outboard needs to be changed regularly.
First we warmed up the engine for 5-10 minutes.
Second we drained the old oil into a pan, making sure the outboard is level to drain fully.
Third we removed the old oil filter, lubricatd the gasket of the new filter with a bit of fresh oil, then screwed it on hand-tight.
Finally, we added fresh oil into into the oil filler hole, being careful not to overfill it.
Dispose of used oil properly: Used motor oil is hazardous waste and must be disposed of at a designated recycling center.
Gear oil (or lower unit oil) lubricates the gears in the lower unit of your outboard motor. This should be changed at least once a year or more frequently if you’re in saltwater.
Let the oil drain completely: Ensure all of the old oil is out before moving to the next step.
Refill with new gear oil: This part was a little tricky because we don’t have a pump. You have to force the new gear oil upwards into the lower unit until it begins to come out of the top vent hole.
Reinstall plugs: Once the oil reaches the upper hole, quickly insert the top vent plug, followed by the lower drain plug. Make sure to use new washers to prevent leaks.
Check for leaks: Wipe off any excess oil and make sure there are no drips around the plugs.
A clean fuel filter ensures that no debris or water makes its way into the engine, which could cause damage or poor performance.
First we had to locate the fuel filter: Ours was found between the fuel tank and the engine, near the fuel line.
Then we removed the old filter: We loosened the clamps holding the filter in place and carefully removed it so as to not spill any fuel.
Next we installed the new filter: We positioned the new filter in the same orientation as the old one, ensuring the flow arrow pointed toward the engine and secured it in place with the clamps.
Lastly we checked for leaks: Once the new filter was installed, we turned the fuel line back on and checked for any leaks.
Spark plugs should be inspected and replaced at least once a year to ensure efficient combustion and easy engine starts.
Remove the old spark plugs: Using a spark plug socket, unscrew the old plugs. Inspect them for wear or fouling (black or oily plugs indicate issues).
Set the gap: Check the gap on the new plugs with a gap tool. Adjust it if necessary to match the manufacturer’s specifications.
Install the new plugs: Apply a small amount of anti-seize compound to the threads, then screw the new spark plugs in by hand. Use the socket wrench to tighten them snugly, but don’t overtighten.
Test the engine: Once the plugs are in, start the engine to ensure everything is working smoothly.
